在 Github workflow 中使用 OpenID Connect (OIDC) 去認證 AWS 服務

OpenID Connect (OIDC) 介紹

前言

  • OIDC 全名為 OpenID Connect，是一種可以 access AWS resources，但不需要存取 AWS credentials 當作 long-lived GitHub secrets 的驗證方式。
  • 官方建議的驗證方式。

OIDC 優點 - 很好的安全實踐 (good security practices)

  • No cloud secrets
    • 不需要以 cloud credentials 當作 long-lived GitHub secrets
    • 在 cloud provider 設定好 OIDC trust，github workflows 就可以利用 OIDC 從 cloud provider 取得一組 short-lived access token
  • Authentication and authorization management
    • 透過 cloud provider 的 authentication (authN) 與 authorization (authZ) 工具能夠控制取得 cloud resources
    • 能更小粒度地控制 workflows 如何使用 credentials
  • Rotating credentials
    • cloud provider 提供一組 short-lived access token 給一個 job，使用完畢後會自動過期。

OIDC 的運作方式與信任機制

運作方式

  • 主要是兩個角色的互動，分別為 Cloud Provider 與 Github OIDC Provider
  • 互動過程 :
    • In your cloud provider, create an OIDC trust between your cloud role and your GitHub workflow(s) that need access to the cloud.
    • Every time your job runs, GitHub’s OIDC Provider auto-generates an OIDC token. This token contains multiple claims to establish a security-hardened and verifiable identity about the specific workflow that is trying to authenticate.
    • You could include a step or action in your job to request this token from GitHub’s OIDC provider, and present it to the cloud provider.
    • Once the cloud provider successfully validates the claims presented in the token, it then provides a short-lived cloud access token that is available only for the duration of the job.

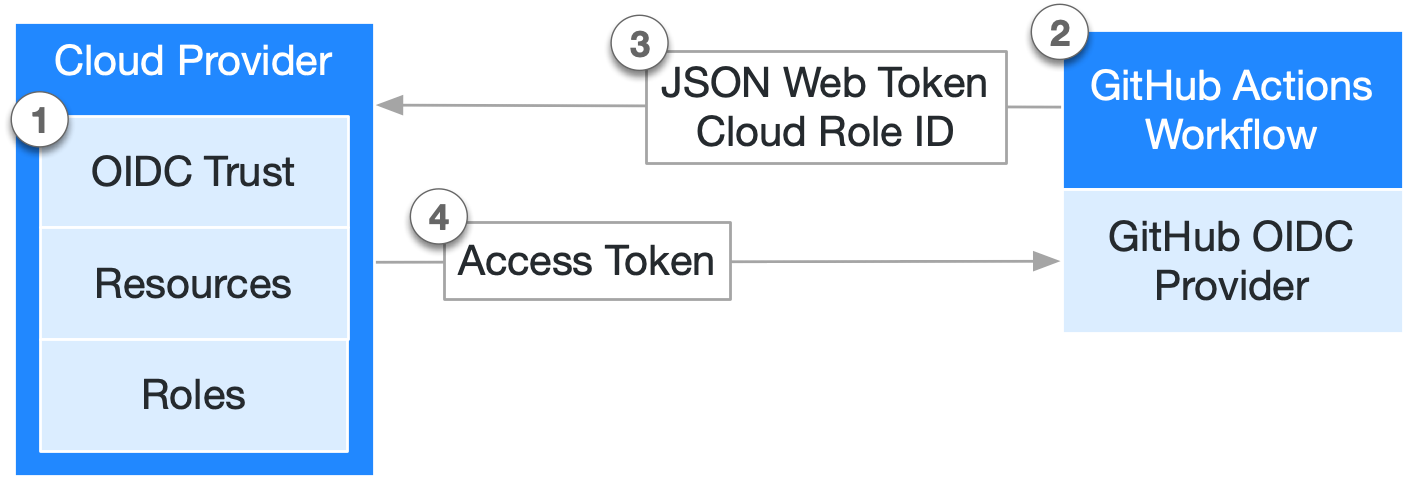

how GitHub’s OIDC provider integrates with your workflows and cloud provider

安全 - OIDC trust

  • 當設定 cloud 能信任 GitHub’s OIDC provider 後，必須加上一些情境去過濾掉 requests，避免沒有取得信任的 repositories or workflows 可以透過 access token 操作你的 cloud resources。

Configuring OpenID Connect in Amazon Web Services

前言

  • 目的是 Use OpenID Connect within your workflows to authenticate with Amazon Web Services.
  • 官方文件

IAM Role

1. Create a iam role

  • 建立一組 iam role，用於上傳 docker image 到 private ECR
  • 建立 iam role 的時候，會需要填入以下資訊 :
    • provider URL : https://token.actions.githubusercontent.com
    • Audience : sts.amazonaws.com

2. Permissions policies

  • iam role 綁定的 permissions policies 是 AmazonEC2ContainerRegistryPowerUser
    • 此政策允許委託人讀取和寫入儲存庫，以及讀取生命週期政策。委託人不會被授予刪除儲存庫或變更套用至其生命週期政策的許可。
    • 可依據需求設定不同的 permissons policies，可參考官方文件

3. Add the GitHub OIDC provider to IAM

  • Configure the role and trust in IAM.

    • 到 iam role 頁面點選編輯 Trust relationships

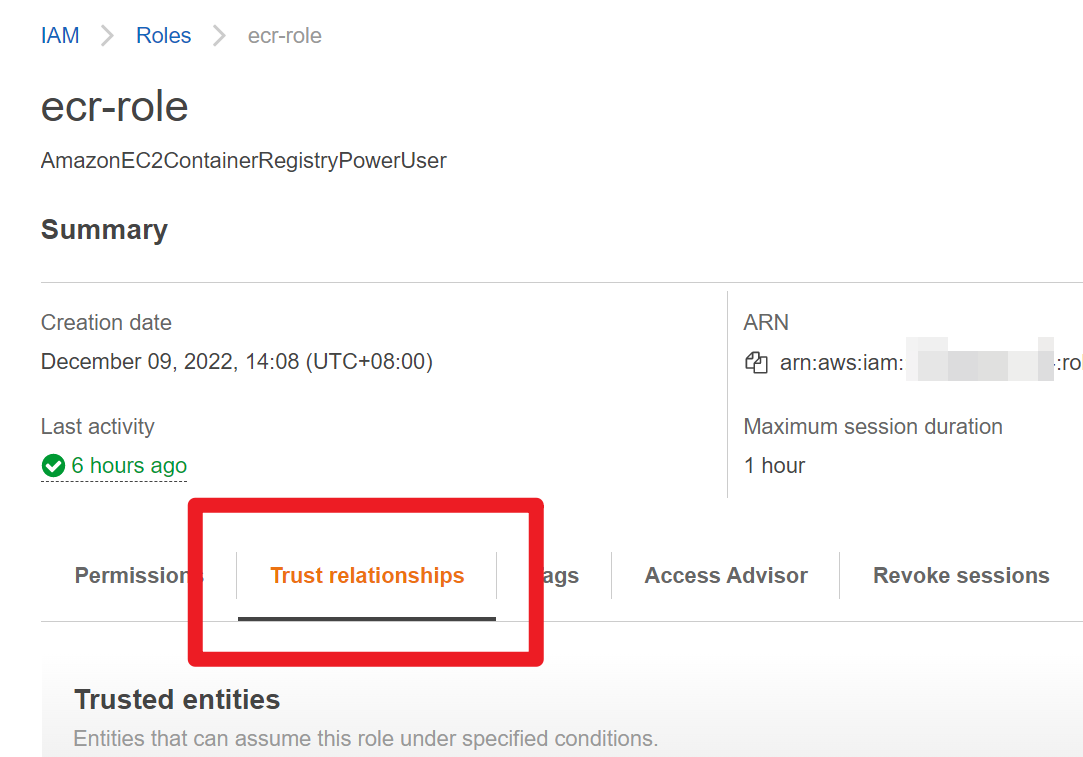

      iam role trust-relationships

    • 參考以下的方式將 sub 欄位加入到 Condition 中

      • 方式一，使用 StringLike

            {
        "Version": "2012-10-17",
        "Statement": [
            {
                "Effect": "Allow",
                "Principal": {
                    "Federated": "arn:aws:iam::123456123456:oidc-provider/token.actions.githubusercontent.com"
                },
                "Action": "sts:AssumeRoleWithWebIdentity",
                "Condition": {
                    "StringLike": {
                        "token.actions.githubusercontent.com:sub": "repo:octo-org/octo-repo:*"
                    },
                    "StringEquals": {
                        "token.actions.githubusercontent.com:aud": "sts.amazonaws.com"
                    }
                }
            }
        ]
    }

      • 方式二，使用 StringEquals


    "Condition": {
        "StringEquals": {
            "token.actions.githubusercontent.com:aud": "sts.amazonaws.com",
            "token.actions.githubusercontent.com:sub": "repo:octo-org/octo-repo:ref:refs/heads/octo-branch"
        }
    }

  • 官方文件

Updating your GitHub Actions workflow

上述是 AWS 相關設定，此步驟是調整 github workflow，做兩件事情 :

  • Adding permissions settings，有兩種權限選擇，可依照自身情境去選擇。

    • fetch an OIDC token for a workflow, then the permission can be set at the workflow level.

      permissions:
    id-token: write # This is required for requesting the JWT
    contents: read  # This is required for actions/checkout

    • only need to fetch an OIDC token for a single job

      permissions:
    id-token: write # This is required for requesting the JWT

  • Use the aws-actions/configure-aws-credentials action

    • 此 action 會接收來自 GitHub OIDC provider 的 JWT，並且向 AWS 請求一組 access token
        - name: Configure AWS credentials
      uses: aws-actions/configure-aws-credentials@v1
      with:
        role-to-assume: arn:aws:iam::1234567890:role/example-role
        role-session-name: GitHubActionsWithAwsEcrUsingOIDCSession
        aws-region: ${{env.AWS_DEFAULT_REGION}}
